Industrial Walkway Solution
Fiberglass Grating Walkway
Lightweight, corrosion-resistant FRP grating walkways designed for safe industrial access in demanding environments
Gallery
Industrial Walkway Installation
Anti-Slip Surface Close-up
Offshore Platform Walkway
Panel Comparison — Mesh Patterns
Overview
Premium Fiberglass Grating Walkway for Industrial Safe Access
Our Fiberglass Grating Walkway is a high-performance FRP (Fiberglass Reinforced Plastic) flooring solution engineered for industrial walkways, platforms, and access paths. Manufactured from premium isophthalic polyester or vinyl ester resin reinforced with continuous glass fiber rovings, these walkway panels deliver exceptional strength-to-weight ratio, superior corrosion resistance, and long-term durability in the harshest environments.
Unlike traditional steel or aluminum grating, fiberglass grating walkways will not rust, corrode, or conduct electricity. The molded construction creates a bi-directional strength profile with an integral anti-slip surface, making it ideal for chemical plants, offshore platforms, wastewater treatment facilities, food processing plants, and marine environments where safety and longevity are critical.
Available in a wide range of standard panel sizes, resin systems, and colors, our fiberglass grating walkway can be customized to meet your specific load requirements, span configurations, and environmental conditions. Each panel is manufactured under strict ISO 9001:2015 quality controls to ensure consistent performance and reliability.

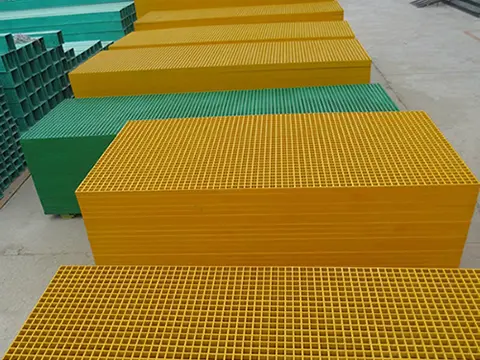

FRP grating panel manufactured with premium resin and glass fiber reinforcement
Specifications
Technical Specifications
FRP Grating Technical Specifications
Dimensions
Standard panel dimensions with bearing bar spacing and cross bar pitch shown for reference. Custom sizes available upon request.
| Parameter | Value |
|---|---|
| Material | Fiberglass Reinforced Plastic (FRP) — Isophthalic Polyester / Vinyl Ester Resin |
| Panel Thickness | 1.0 in (25 mm), 1.5 in (38 mm), 2.0 in (50 mm) |
| Standard Panel Size | 4 ft × 12 ft (1.22 m × 3.66 m) |
| Mesh Pattern | 1.5 in × 1.5 in (38 mm × 38 mm) square mesh — Molded |
| Load Capacity (Uniform) | Up to 750 psf (36 kPa) depending on thickness and span |
| Panel Weight | 3.2 – 4.5 psf (15.6 – 22.0 kg/m²) |
| Temperature Range | -65°F to +180°F (-54°C to +82°C) — Standard; Up to +300°F (149°C) with specialty resin |
| Anti-Slip Surface | Integral grit-top surface — COF > 0.8 (dry), > 0.6 (wet) |
Features
Features & Benefits
Key Features of FRP Grating
Superior Corrosion Resistance
Built with vinyl ester or isophthalic polyester resin, our walkway grating withstands acids, alkalis, solvents, and saltwater. No rust, no corrosion — even in the harshest chemical or marine environments. Service life exceeds 20 years with minimal maintenance.
Lightweight & High Strength
At only 3.2–4.5 psf, fiberglass grating walkway panels weigh 75% less than steel yet deliver comparable load capacity. Easy to transport, handle, and install without heavy lifting equipment — reducing labor costs and installation time.
Integrated Anti-Slip Safety Surface
The molded grit-top surface provides excellent slip resistance with COF > 0.8 dry and > 0.6 wet, exceeding OSHA safety standards. Protects workers in wet, oily, or greasy conditions common in industrial walkways.
Non-Conductive & Spark-Resistant
FRP grating is electrically non-conductive and spark-resistant, making it the safest choice for electrical substations, battery rooms, chemical processing, and other hazardous environments where metal grating poses a risk.
Low Maintenance & Long Service Life
Unlike steel grating that requires regular painting, galvanizing, or replacement due to rust, fiberglass grating walkway requires no painting, no coatings, and minimal upkeep. With a design life of 20+ years, it provides the lowest total cost of ownership.
Customizable Sizes & Resin Systems
Available in multiple thicknesses, panel sizes, resin types (polyester, vinyl ester, epoxy), and colors to match your specific project requirements. Custom cut-to-size service available for non-standard applications.
Applications
Where It's Installed
Chemical Processing Plants
Corrosion-resistant walkways for chemical storage, processing & loading areas
Industrial Manufacturing Facilities
Safe, durable walkways and platforms in factories & production lines
Offshore Platforms & Marine
Lightweight, saltwater-resistant walkways for oil rigs & marine facilities
Wastewater Treatment
Corrosion-proof walkway grating for wastewater treatment facilities
